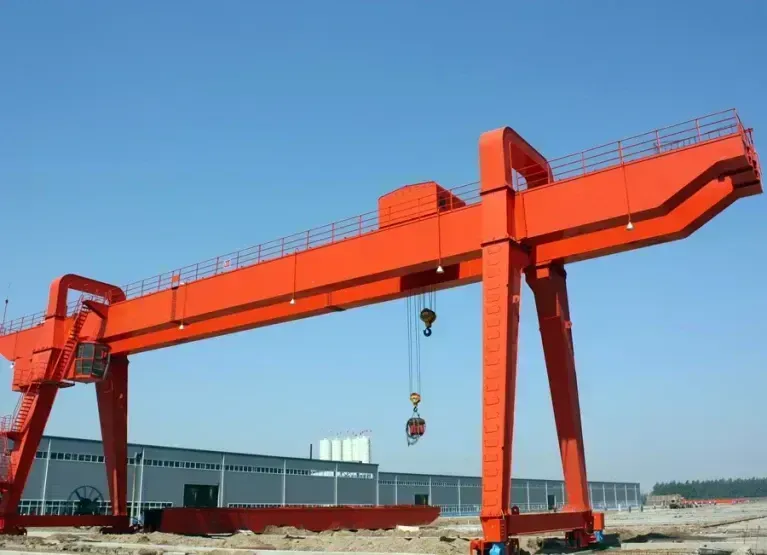

40 Ton Double Girder Gantry Crane

Yuantai Crane's 40 Ton Gantry Cranes are robust, heavy-duty lifting systems designed for demanding material handling tasks. These cranes handle loads up to 40 tons and are built with high-strength steel and precision components. They serve ports, terminals, factories, construction sites and other industrial facilities. The series includes several models: a 40 Ton Rail-mounted Gantry Crane and a 40 Ton Rubber-tyred Gantry Crane (RTG) optimized for container handling; a 40 Ton Truss Gantry Crane for very large outdoor spans; plus 40 Ton Double Girder Gantry Crane and 40 Ton U-Type Double Girder Gantry Crane for heavy-duty lifting in workshops or yards. Each model is engineered for reliable, safe operation in its target environment. All cranes are factory-tested and comply with applicable safety and design standards (such as OSHA and CMAA/ANSI specifications) to ensure quality and reliability.

40 Ton Truss Gantry Crane for Outdoor Lifting

Ask for Price

40 Ton Double Girder Gantry Crane

Ask for Price

40 Ton U-Type Double Girder Gantry Crane

Ask for Price

40 Ton Rail-mounted Gantry Crane

Ask for Price

40 Ton Rubber-tyred Gantry Crane

Ask for Price

Model Comparison

Below is a summary of our 40 Ton gantry crane models and their key characteristics:

Each model can be customized in span, lifting height and travel configuration to suit a specific site or application. For example, the Rail-mounted Gantry Crane runs on fixed rails (suited to port quays) while the RTG moves on tires over a paved yard (ideal for container stacking). The Truss Gantry is used where very long spans or higher clearances are needed. The Double Girder models are versatile for general heavy lifting under overhead rails. The U-Type Double Girder has an open frame that allows unobstructed loading under the bridge.

Technical Standards

Yuantai's 40 Ton Gantry Cranes are engineered to meet major industry and safety standards. All new overhead and gantry cranes must comply with OSHA 1910.179 (Overhead and gantry cranes) in the U.S., which mandates design specifications per ANSI/ASME B30.2 (Safety Code for Overhead and Gantry Cranes). We design our gantry cranes to CMAA (Crane Manufacturers Assoc. of America) specifications as well. For example, CMAA Specification 70 covers top-running bridge and gantry cranes (multiple girder) with duty classes A–F. Our 40 Ton cranes typically meet heavy-duty classes (Class D/E) for steel mill and container operations. We also adhere to ISO and European standards: ISO 9001 quality management system in manufacturing, EN 15011 (bridge cranes), and relevant CE/UL requirements for electrical and mechanical safety. Each crane is certified and tested per local regulations (CE marking for EU, or equivalent), and issued with an inspection report on delivery.

Components

Yuantai 40 Ton Gantry Cranes use high-quality components throughout:

• Girders

  The main girders are heavy-duty box or truss beams made from high-strength structural steel (for example, Q345B or equivalent). Double girder design is standard for 40 t capacity, providing stiffness and strength. Box girders offer a compact, sturdy form; truss girders (used on our Truss Gantry models) reduce weight for very long spans. Girders are precisely welded and stress-relieved to minimize deformation. The span (distance between legs or wheels) and girder height are engineered per the load and duty class. End trucks connect to the girders and house the wheelsets for crane travel.

• Trolley and Hoist

  The trolley (or crab) runs on rails atop the girders and carries the hoisting mechanism. For 40 t capacity, we typically use a wire-rope hoist with robust gearbox and motor. The hoist includes a steel wire rope reeved on drum, multi-plate friction brake, and block with heavy hook. In some designs a twin-hoist trolley (two hoists on one girder) is available for long-span lift distribution. The hoist speed and torque meet the crane's duty rating (for example, FEM/ISO ratings). Limit switches for upper/lower travel protect against over-hoist or over-lower. All hoists are designed to ISO and CMAA standards, and the wire rope meets ISO 4309 (inspection and care). The trolley frame is welded steel, and wheels are profiled steel with sealed bearings.

• Legs and Supports

  For rail-mounted cranes, the leg frames are rigid box-section columns, precisely aligned to the runway beams. Flexible-leg design is available to adjust for minor runway misalignment. Each leg carries drive motors (end trucks) and wheels that roll on the rails. The legs are braced to the girders for stability. For RTG cranes, the “legs” are the massive portal frame columns with large pneumatic tires. RTG legs house hydraulic cylinders that steer the wheels and support the bridge. All leg structures are painted with industrial coatings for weather protection (e.g. outdoor anti-corrosion paint).

• Drives and Motors

  Each end truck is powered by an AC motor coupled to a gearbox for smooth crane bridge travel. The trolley travel also uses a motor and gearbox (separate from bridge drives). Motors have the required power (often up to tens of kW) and are matched to the duty cycle. For rubber-tyred cranes, diesel engines with hydraulic drives can propel the crane (standard on many RTGs), or we offer all-electric RTGs (with onboard generator or battery). All motors have industrial insulation and IP ratings (commonly IP54 or better). Variable Frequency Drives (VFDs) are often used for fine speed control and energy savings on bridge and trolley travel.

• Electrical System

  The crane's electrical control system is centralized in a floor-mounted or wall-mounted panel, built to IEC standards. Controls include start/stop and direction for hoist, trolley, and bridge motions. Power supply options include conductor bar (busbar), cable reel (festoon system), or external connections (for RTG cranes). Control methods can be a push-button pendant station, a cabin operator console, or a wireless remote control. Safety circuits use industrial contactors and relays, and optional PLC control is available for automation (for example, programmable anti-collision control between cranes). Emergency stop circuits are redundant. The system includes electrical protection devices (fuses, overload relays) and grounding per OSHA/ANSI requirements.

• Safety Devices

  Our 40 Ton Gantry Cranes incorporate multiple safety devices. These typically include overload protection (load cells or limiting devices) to prevent lifting beyond rated capacity; upper/lower limit switches to stop the hoist travel at end positions; bridge travel limit switches to prevent overrunning the runway; emergency stop buttons accessible to the operator; and protective guards around moving parts. Anti-collision devices (radar or laser sensors) can be fitted on container cranes to avoid contact between adjacent cranes. Optional features include anti-sway control (to damp load swing) and camera-vision systems. All safety devices are tested during commissioning, and circuitry meets OSHA and ASME safety code requirements.

Features

Designed for demanding industrial environments, Yuantai's 40 ton gantry cranes can be customized to meet your specific needs.

1. Heavy-duty construction

The crane uses a robust steel structure combined with high-grade components to handle continuous heavy loads. The main girders, legs, and connection points are engineered to resist fatigue and deformation over time. This solid build helps the crane stay stable during lifting and travel, even in harsh working conditions. For you, this means fewer structural issues and a longer usable life.

2. High performance

A powerful hoist system and reliable travel drives allow the crane to lift and move loads smoothly. Soft start and stop functions reduce shock to both the load and the structure. Adjustable speed control lets you match crane movement to the task, whether you need fast positioning or precise handling. This improves productivity while protecting mechanical parts.

3. Flexible operation

You can choose from several power supply options, including busbar, cable reel, or battery, depending on your site layout. The crane also supports different control methods, such as a driver cabin, pendant control, or remote control. This flexibility makes it easier to integrate the crane into your existing operation. You can operate it in the way that feels safest and most efficient for your team.Versatile design

4. Versatile design

The crane is available in box or truss structures to suit different span and weight requirements. You can select fixed rail or mobile tyre configurations based on whether the crane stays in one area or needs to move between zones. Single or double trolley options allow you to adapt the crane to specific lifting patterns. This design flexibility helps you match the crane closely to your application.

5. Advanced safety

Built-in overload sensors, limit switches, and emergency stop systems protect both people and equipment. These systems prevent unsafe lifting and uncontrolled movement. Optional anti-collision and anti-sway functions add another layer of protection in busy or complex work areas. For you, this means safer operation and fewer unexpected shutdowns.

6. Environmental protection

The crane uses weather-resistant paint and coatings for outdoor operation. Motors and electrical components are rated for industrial environments, such as IP54 or higher. This protection helps the crane perform reliably in rain, dust, and temperature changes. You can expect stable operation even in challenging site conditions.

7. Easy maintenance

Key components like gearboxes, brakes, and electrical cabinets follow a modular design. This allows quick inspection and replacement when needed. Centralized lubrication points and grease fittings reduce routine maintenance time. As a result, you spend less time on servicing and more time keeping the crane in operation.

Precautions for Use

Using a 40 Ton Gantry Crane safely is not only about meeting regulations. It is also about protecting your people, your load, and your investment. When you operate a crane of this size, small mistakes can lead to serious damage or long downtime. Clear procedures help you keep daily operations smooth and predictable. They also help you get the full service life from the crane.

1. Pre-use Inspection

Before each shift, you should take time to inspect the crane carefully. Look closely at the hoist rope for broken wires, corrosion, or flattening, since rope failure can cause sudden load drops. Check the hook for cracks, deformation, and a working safety latch, and make sure the hook can swivel freely. Inspect the runway rails or ground surface to confirm they are straight, level, and free of obstacles. Test limit switches and emergency stop buttons to ensure they respond immediately. These simple checks help you spot problems early, before they turn into costly repairs or safety incidents.

2. Capacity and Loads

You should always respect the rated 40 ton capacity and treat it as a firm limit, not a guideline. Overloading stresses the structure, hoist, and drive systems and shortens the crane's service life. Make sure the load is balanced and secured with approved slings, shackles, or spreader bars that match the weight and shape of the load. Keep the load centered under the hoist to avoid side pulling and uneven forces. When the load is level and stable, you gain better control and reduce swing, which improves safety and lifting accuracy.

3. Operation

During lifting, smooth and steady control is essential. Sudden starts or stops can shock the crane and the load, even if the weight is within limits. You should lift and lower gradually and avoid dragging loads along the ground, as this can damage both the crane and the surface below. Keep people clear of suspended loads at all times, and maintain clear communication on the job site.

4. Environment

The working environment has a direct impact on crane safety and performance. You should only operate the crane within the conditions it is rated for. For outdoor gantry cranes, high winds, heavy rain, or storms increase the risk of load swing and loss of control, so operations should stop when conditions become unsafe. Keep runway rails clean and ensure proper clearance around them, including the required space above the rail. For rubber-tired gantry cranes, operate on firm, level ground and secure the crane with wheel chocks when parked. A controlled environment reduces wear and unexpected hazards.

5. Training

Proper training is critical for safe crane use. You should ensure that operators are trained and qualified according to OSHA or local regulations. A trained operator understands how the control system responds, where the crane's limits are, and how to react in an emergency. Training also builds good habits, such as proper signaling, load positioning, and shutdown procedures. When operators know what to expect from the crane, they can work more efficiently and with fewer mistakes.

6. Load Testing

After installation, a certified load test confirms that the crane can safely handle its rated capacity. This test, often performed at 125% of the rated load, verifies the strength of the structure, hoist, and braking systems. You should not put the crane into regular service until it passes this test. Periodic re-testing, as required by local standards, helps ensure the crane remains safe as it ages.

Model Selection Guidelines

Selecting the right 40 Ton Gantry Crane starts with a clear understanding of how and where you plan to use it. Every site has its own limits, and every lifting task places different demands on the crane. When you look at application type, span, mobility, duty cycle, and budget together, the right model becomes much easier to identify.

1. Application Type

The first step is to define what you will lift and how often. If you handle heavy containers in ports or intermodal terminals, a Rail-mounted Gantry Crane or an RTG is usually the best fit. Rail-mounted models deliver higher lifting heights and faster cycles, which helps with ship loading and unloading. RTG cranes are better for wide container yards because they can stack containers flexibly without fixed rails. For factory or workshop use, where you lift machinery or steel structures, a Double Girder Gantry Crane provides strong stability and smooth operation, especially when used under indoor or semi-indoor conditions.

2. Span and Height Requirements

Your site dimensions directly affect crane design. You should measure the distance between the working areas and the required lifting height before choosing a model. For very long spans above 30 meters, a Truss Gantry Crane reduces overall weight while maintaining strength. Box-girder designs are more common for moderate spans and offer excellent rigidity. Hook height and clearance are just as important as span, especially if you handle tall loads. We customize span and lifting height to ensure the crane fits your space and supports safe, efficient operation.

3. Mobility Needs

How often you need to move the crane is another key factor. If your work requires frequent relocation across a yard, an RTG crane is a practical solution. It moves on rubber tires, operates independently, and does not depend on a fixed runway. If your lifting area is permanent and well defined, a rail-mounted gantry crane is more stable and efficient over the long term. Once installed, it stays aligned on its rails and delivers consistent performance for repeated lifting tasks.

4. Duty Cycle

You also need to consider how hard the crane will work each day. High-frequency lifting of heavy loads, such as in busy container yards, demands a higher CMAA service class, often Class D or E. These cranes are built for durability, higher speeds, and longer service life. For lighter loads or occasional lifting, a lower service class is usually enough and can help control costs. Yuantai designs cranes according to your actual usage, so the crane strength matches your workload without unnecessary overdesign.

5. Site Conditions

The condition of your site plays a major role in crane selection. Rail-mounted cranes require solid foundations with accurately installed steel rails on reinforced concrete. RTG cranes need a flat, paved surface that can handle heavy wheel loads without sinking or cracking. Environmental factors also matter. If you work in coastal areas, high temperatures, or corrosive environments, special coatings, materials, or protections may be necessary. These details help extend crane life and reduce maintenance issues over time.

6. Budget and Customization

Discuss your budget. We can adjust materials or features (speed, controls) to meet needs. The"U-Type Double Girder" is a popular crane that provides extra under-bridge space for tall loads (like trucks or pipes) while maintaining 40 t capacity.

In all cases, we recommend consulting with Yuantai's engineering team. We use standards like ISO 4301-1 to classify service conditions, ensuring the chosen crane matches your operational demands.

Maintenance Practices

Good maintenance keeps a crane safe, reliable, and productive over its full service life. A clear maintenance plan helps you avoid sudden breakdowns, protect operators, and control long-term costs. It also helps you meet safety standards and pass inspections with confidence.

• Daily Inspections: Before each shift, inspect hoist ropes, hooks, brakes, limit switches, and control devices. Listen for unusual noises during operation. Check for loose bolts or deformations. Remove any debris from rail tracks or wheels.
• Lubrication: Apply grease or oil to moving parts regularly. Wheel bearings, guide rollers, hoist ropes, and gear teeth should be lubricated per the manual. Proper lubrication prevents wear and reduces energy loss.
• Mechanical Checks (Weekly/Monthly): Check alignment of runway rails and wheel condition. Verify that the rope drum flange has proper flange contact and the rope is winding neatly. Inspect brake pads for wear. Ensure electrical connections are tight and components (contactors, fuses) are clean.
• Testing Limits and Safety: Test upper and lower travel limits, emergency stops and overload indicators. Ensure they activate reliably. Calibrate overload devices and indicators as specified.
• Periodic Inspections: Perform thorough inspections at recommended intervals (typically every 6 or 12 months) based on usage. These “periodic” inspections include checking structural bolts, welds, ropes for kinks or breaks, and measuring rope wear. 1910.179 OSHA rules define frequent inspections (daily to monthly) and periodic inspections (1–12 months) based on usage conditions. Document every inspection and repair.
• Wire Rope and Hook Care: Replace wire rope when inspection (ISO 4309 criteria) shows wear or broken strands. Hooks should be removed from service if any cracks or deformation appear (OSHA requires certified monthly checks).
• Electrical System: Keep electrical panels dust-free. Verify ground continuity. Test control stations and safety circuits. Replace worn pendant or remote controls.
• Professional Service: Have a qualified crane technician inspect critical components annually (or more often for severe-duty cranes). Follow any local certification requirements. Keep maintenance logs on file.

Adhering to these practices reduces downtime and enhances safety. Yuantai provides a maintenance manual with each crane, outlining all required procedures. Note that many standards (CMAA, ISO, OSHA) mandate maintenance schedules and recordkeeping, so following these guidelines ensures compliance.

Customization Options

Every lifting project has its own limits and goals. A 40 Ton Gantry Crane should fit your site, not force you to change the way you work. That is why customization matters. From structure size to control style, each option helps you improve safety, efficiency, and long-term value. When you choose the right configuration, daily operation becomes smoother and maintenance becomes easier.

1. Span and Height

The span and lifting height can be engineered to match your site conditions. You can design the crane to cover wide yards or narrow work areas without wasting space. If your project requires extra height or a long travel distance, truss structures can provide strength without adding too much weight.

2. Bridge and Leg Type

You can choose between box-girder and truss bridges depending on load demands and budget. Box girders offer strong rigidity for heavy-duty use, while truss designs reduce weight and wind resistance. Leg options also vary. Rigid or flexible legs suit different rail and ground conditions. The U-type leg design gives you more clearance under the bridge, which is useful when moving tall or bulky loads.

3. Power Supply

Different job sites need different power solutions. You can select conductor bars for stable indoor use or festoon cable systems for flexible outdoor operation. For remote locations, diesel or battery-powered systems allow full mobility without a fixed power source. Electrical specifications such as voltage and frequency can match local standards. If you work in hazardous areas, explosion-proof electrical systems add an extra layer of safety.

4. Control and Automation

Control options affect both comfort and precision. A cabin-operated crane gives you a wide, clear view and is ideal for frequent lifting tasks. Wireless remote control allows you to guide loads from the safest position on the ground. For advanced operations, PLC-based automation can handle repeated movements with high accuracy. Features like anti-collision systems, load displays help you reduce risk and track crane performance over time.

5. Hoist Attachments

The hoist can be adapted to the type of load you handle most often. A standard hook works for general lifting, but special attachments improve efficiency for specific materials. Container spreaders make handling 20 or 40 foot containers faster. Magnets are useful for steel plates and scrap. Vacuum lifters, clamps, or auxiliary hoists allow you to manage unique loads with better control and less manual effort.

6. Speed and Duty

Lifting speed and duty class should match how often you use the crane. Higher hoist or trolley speeds improve productivity in busy yards. For continuous or heavy use, upgrading the duty class ensures reliable operation and longer service life. If your work is lighter or less frequent, a lower duty configuration can reduce upfront cost while still meeting your needs.

7. Environmental Protections

Environmental conditions have a direct impact on crane life. Special paint systems protect the structure from salt air and moisture in coastal areas. Corrosion-resistant components reduce maintenance in harsh environments. For cold regions, heaters and low-temperature materials keep the crane running smoothly. These protections help you avoid downtime caused by weather or corrosion.
